Carbon Fiber / Colored Kevlar® Hybrid – 2×2 Dual Twill – 50 in (127 cm)

This professional-grade hybrid combines aerospace-quality 3K carbon fiber with colored aramid (Kevlar®) yarns running in both the warp and weft. The result is a distinctive 2×2 dual twill that delivers a tighter, higher-density 14×14 construction (vs. standard) for minimal gaps, superior drape, and a refined cosmetic finish that looks outstanding under a clear coat.

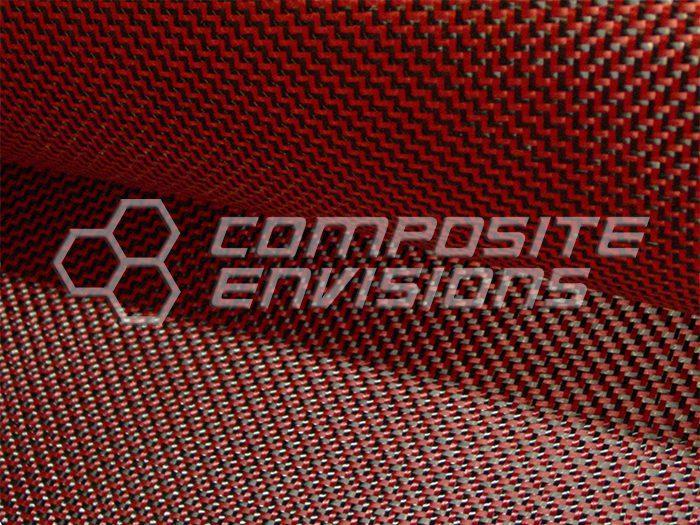

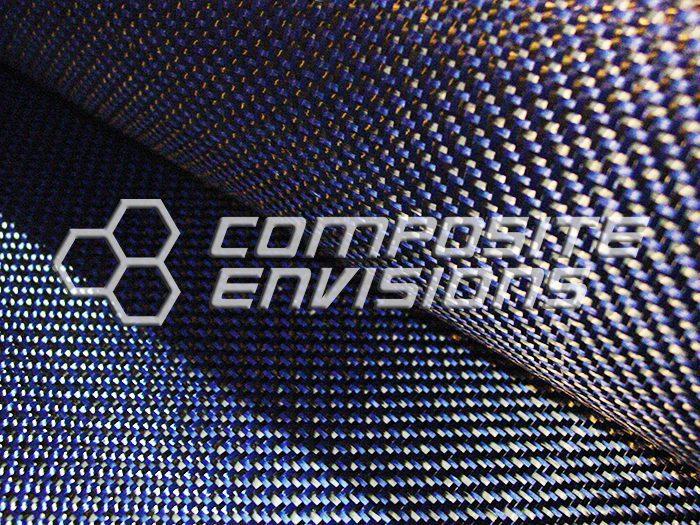

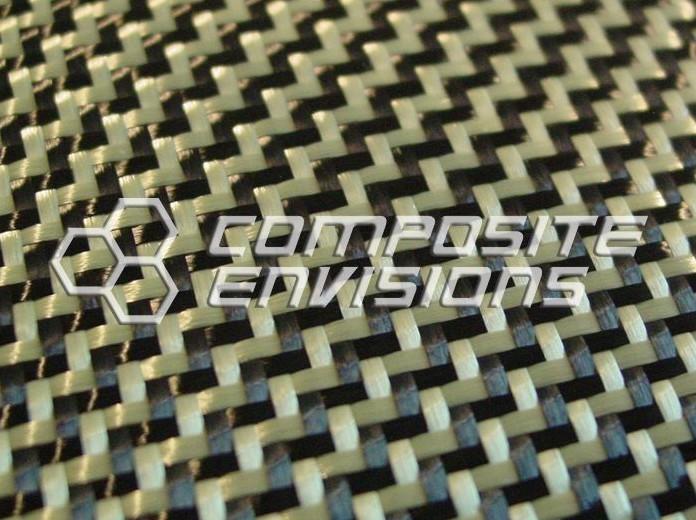

Available in Red, Yellow, Blue, and Orange aramid colorways, this hybrid pairs carbon stiffness with aramid impact/abrasion resistance—ideal for high-end skins, interior/exterior panels, and show-quality parts that still need real performance.

Why Builders Choose This Fabric

• 2×2 Dual Twill • 14×14 density: tighter weave, fewer pinholes, excellent cosmetics.
• Hybrid performance: carbon for stiffness, aramid for toughness and durability.
• Great drape & conformability: lays down cleanly over complex curves and contours.
• Process-friendly: wet layup, vacuum bagging, infusion, RTM; prepreg conversion compatible.
• Show-quality finish: striking colored aramid pattern that pops under a UV-stable clear.

Typical Applications

• Automotive & motorsport: interior trims, dashboards, door cards, exterior skins
• Marine, UAV/FPV, robotics, sporting goods, instrument housings
• Protective skins and high-impact paneling where cosmetics matter

Processing Notes

• Use a compatible resin systems to convert the fabric into a rigid laminate; water-clear, non-yellowing epoxy is recommended for colored aramid clarity and depth.
• Rotate plies (e.g., ±45°, 0/90°) to balance properties in all directions.
• Non-structural skins/covers often require 1–2 plies; structural parts typically combine with additional reinforcements.
• Use sharp shears or a rotary cutter—aramid fibers are tough and resist clean cutting.
• Finish with a UV-stable clear coat to protect color vibrancy and the cosmetic surface.

Ordering

• Width: 50" (127 cm)
• Sold by:Linear Yard — 1 yard = 36" length × full width
• Continuous Lengths: Multiple yards ship as one continuous piece whenever possible.

Color Disclaimer: Due to monitors, lighting, and clear-coat chemistry, on-screen colors may vary from the finished part. Kevlar® is a registered trademark of DuPont. Colored aramid may be sourced from DuPont Kevlar® or Lumat brand aramid as available.
