Carbon Fiber / Colored Kevlar® Hybrid – 60″/152cm 50"/127cm Wide

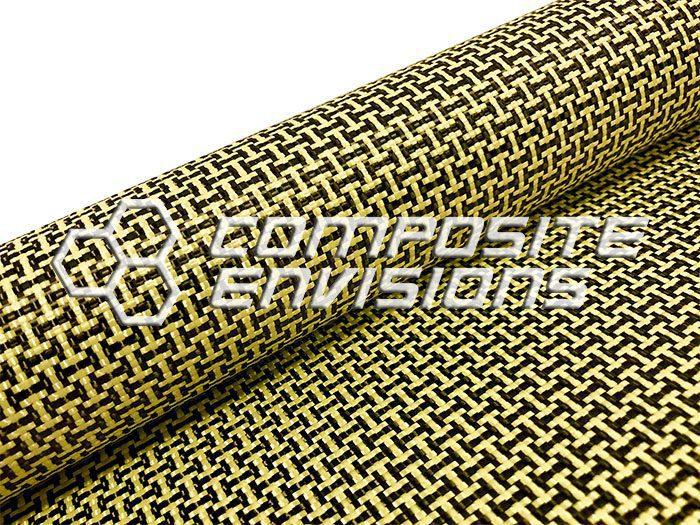

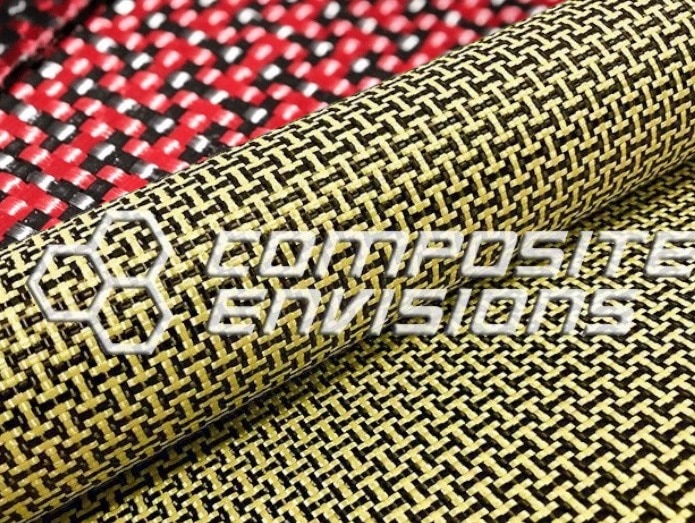

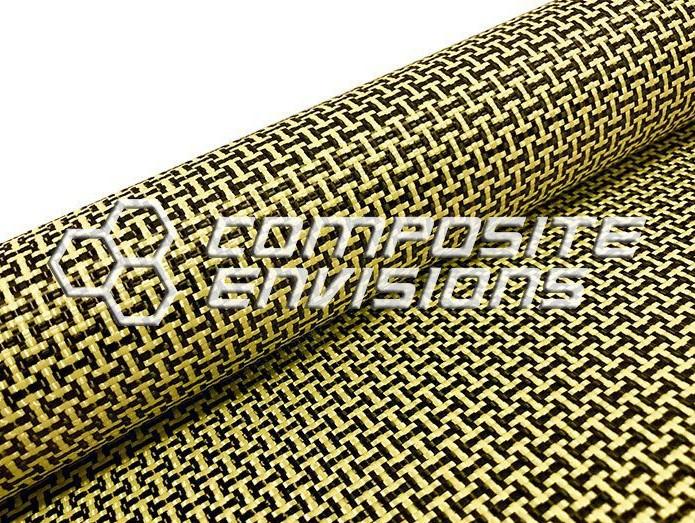

This premium hybrid pairs 3K carbon fiber with 1500d colored aramid (Kevlar®) in a distinctive Dogbone pattern (also known as I-Weave / H-Weave). The result is a striking, technical aesthetic with real composite performance—light weight, crisp pattern definition, and enhanced impact/abrasion resistance from the aramid. Available colors: Red and Yellow.

Why Builders Choose It

• Dogbone (I-Weave / H-Weave) pattern delivers a unique technical look that stands out from standard twill.
• 3K carbon fiber provides stiffness and the classic carbon depth/contrast.
• Dyed Kevlar® adds color, toughness, and superior impact/abrasion resistance.
• 60″ width (152 cm) 50" (127cm) for efficient coverage and fewer seams on wide panels.
• Versatile in wet lay-up, vacuum bagging, infusion, RTM; suitable for cosmetic skins and light structural skins.

Typical Applications

• Automotive & motorsport interior trim, dash/console skins, door cards, overlays
• Exterior cosmetic panels, accent parts, fairings, cowlings
• Marine, UAV/FPV, robotics, consumer & sporting goods
• Any project where a carbon fiber + colored aramid look and light functional performance are desired

Processing & Appearance Notes

• Colors can darken or shift when resin is introduced—make a small test panel to confirm appearance.
• Use a water-clear, UV-stable epoxy, then finish with a UV-resistant clear coat for brightness and gloss retention.
• Cut with sharp shears or a rotary cutter; edge-seal if needed to minimize fraying before bagging.
• For reinforcement skins, orient plies to achieve balanced properties across the part.

Ordering

• Width: 50" (127 cm) or 60" (152cm)
• Sold by:Linear Yard — 1 yard = 36" length × full width
• Continuous Lengths: Multiple yards ship as one continuous piece whenever possible.

Color Disclaimer: Due to display variations, lighting, and resin chemistry, perceived color may vary. Always verify on a test panel for critical color-match projects.
