Carbon Fiber / Dyed Fiberglass Hybrid – 50/47 in (127/119 cm)

This premium hybrid pairs genuine 3K carbon fiber with dyed fiberglass to deliver a show-quality 2×2 twill aesthetic with practical performance. Version 2 features a softer, more drapable hand for easier lay-ups over complex curves while maintaining clean twill definition and a refined, high-end finish.

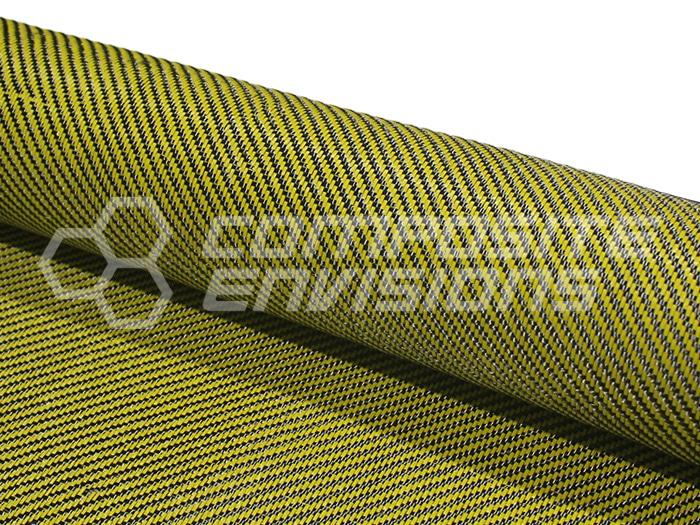

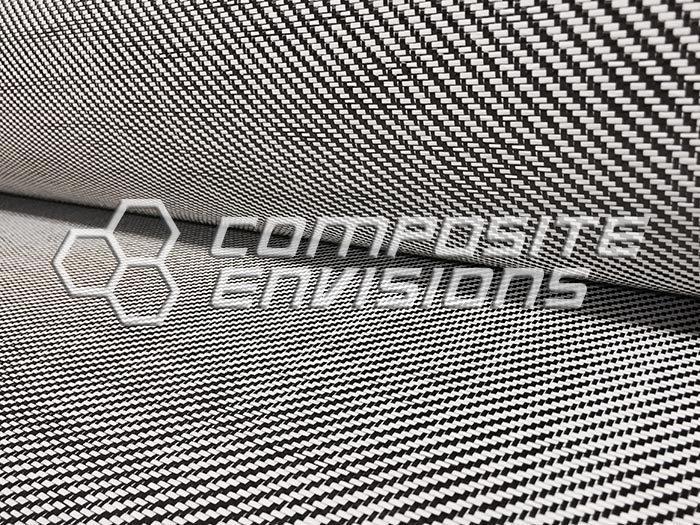

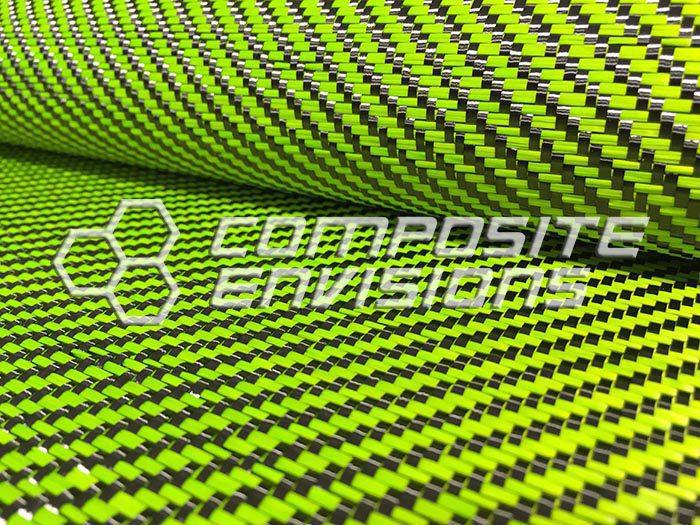

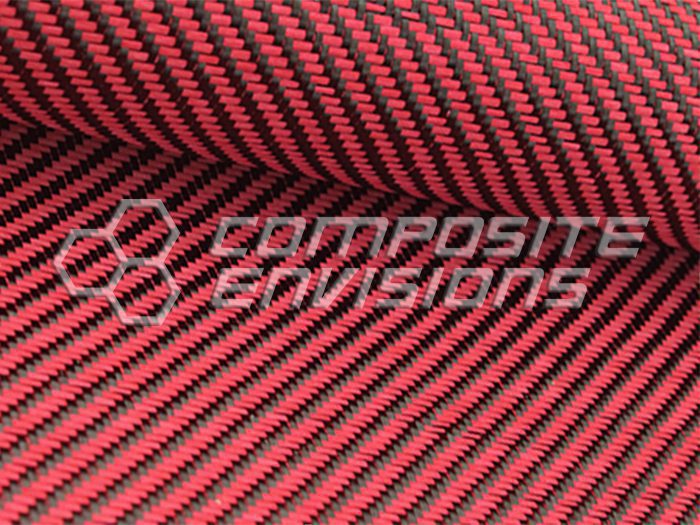

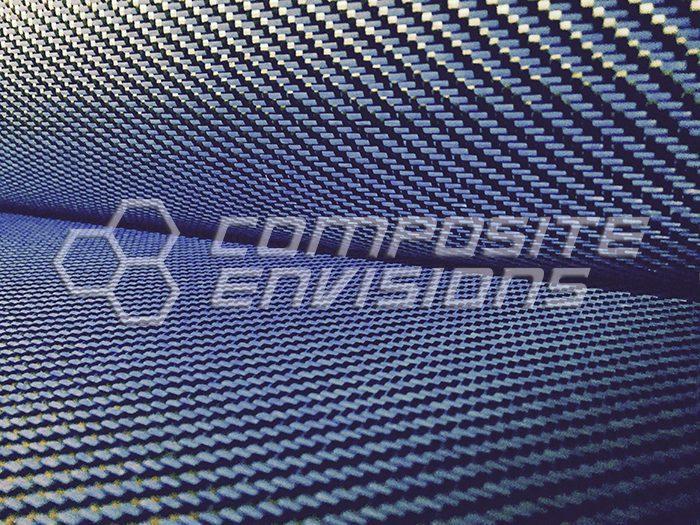

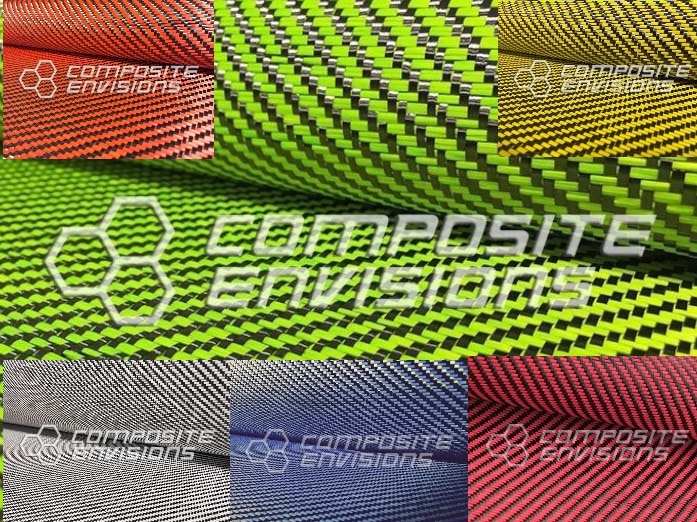

Available colorways include Red, Yellow, Blue, Orange, White, and Lime Green. The dyed fiberglass provides vibrant color, while the carbon fiber adds stiffness and crisp twill contrast—ideal for interior and exterior skins, cosmetic panels, and parts that still benefit from real composite performance.

Highlights

• 2×2 Twill • 3K carbon for a classic performance look with excellent drape and lay-down.
• Version 2 “Softer” hand: improved conformability over tighter radii and compound contours.
• Dyed fiberglass color layer in six bold options: Red, Yellow, Blue, Orange, White, Lime Green.
• 50/47 in (127/119 cm) wide roll for efficient coverage and fewer seams on large panels.
• 425 gsm (12.53 oz) hybrid areal weight for dependable handling and consistent cosmetics.
• Compatible with wet lay-up, vacuum bagging, infusion, RTM; can be converted to prepreg by qualified users.

Typical Uses

• Automotive & motorsport: dashboards, door cards, consoles, trim, overlays, exterior skins
• Marine, UAV/FPV, robotics, consumer & sporting goods
• Cosmetic panels where color + carbon aesthetics and light functional stiffness are desired

Processing Notes

• Colors may darken or shift when resin is introduced—always make a small test panel to confirm appearance.
• Use a water-clear, UV-stable epoxy and finish with a UV-resistant clear coat to preserve brightness and gloss.
• Version 2 “Softer” improves drape—avoid aggressive handling that could disturb twill alignment before cure.
• Cut with sharp shears or a rotary cutter; seal edges where necessary to minimize fray before bagging.

Ordering

• Width: 50" (127 cm)
• Sold by:Linear Yard — 1 yard = 36" length × full width
• Continuous Lengths: Multiple yards ship as one continuous piece whenever possible.

Color Disclaimer: Due to the nature of composite materials and clear coats, coloration may change or darken when resin is introduced. Display devices, lighting, and resin chemistry can affect perceived color. Always verify with a test panel for critical color-match work.
