Carbon Fiber Fabric 2x2 Twill 12k 19.7oz/668gsm

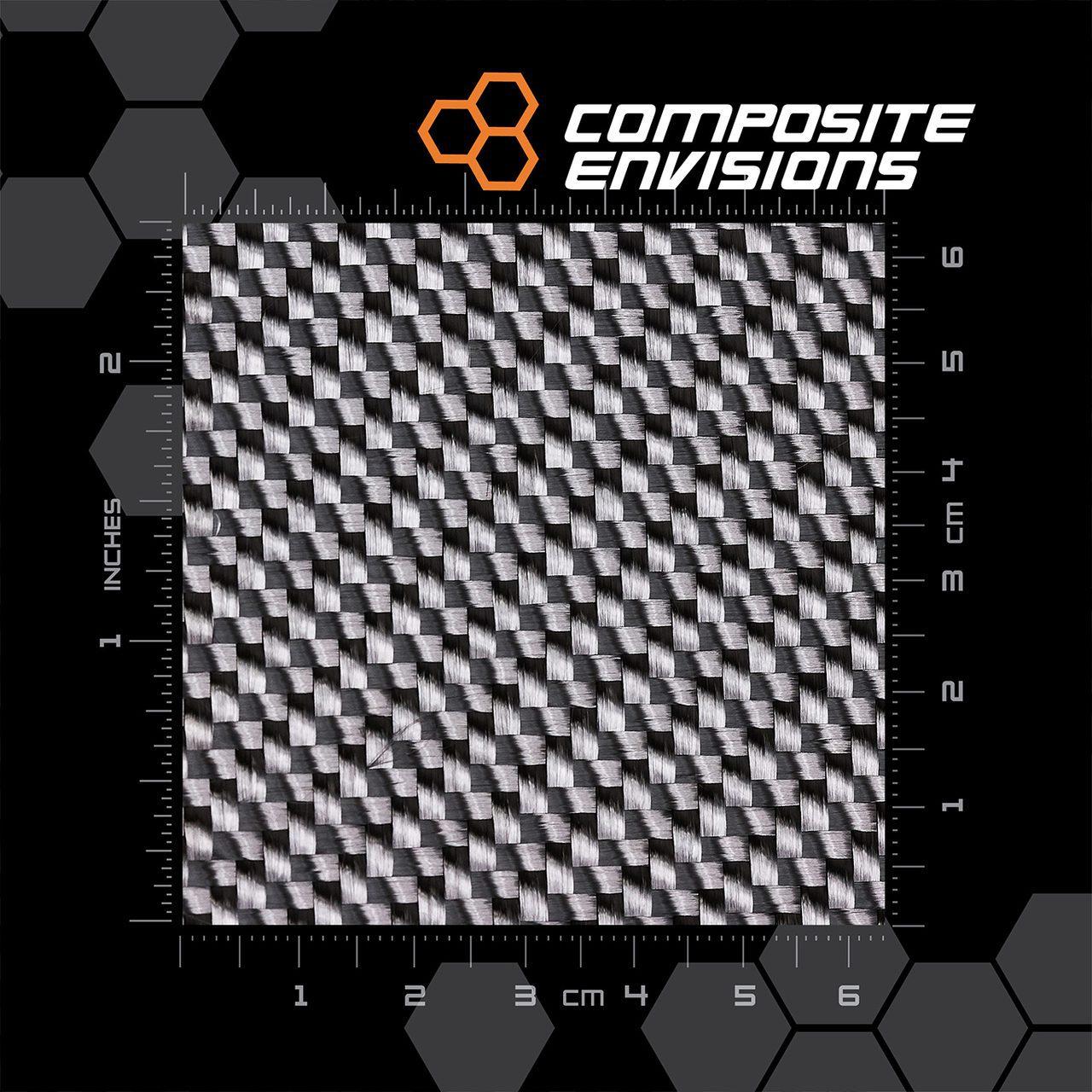

Carbon Fiber Fabric – 2x2 Twill • 12K • 19.7 oz (≈668 gsm)

Build stiffness fast with this heavy 12K 2×2 twill carbon fiber cloth. At 19.7 oz (≈668 gsm), it lays down a thick, high-fiber laminate in fewer plies—ideal for large, rugged parts, tooling skins, and impact-resistant panels. The classic 2×2 twill provides the drape needed to conform around contours while keeping the iconic carbon appearance. Woven from high-grade PAN-based fibers, this cloth features a tight commercial weave for straighter bundles and cleaner cosmetics than many entry-level heavy fabrics.

Why choose this fabric

• Heavy areal weight (19.7 oz / 668 gsm): rapid thickness and stiffness per ply—fewer layers, less labor.
• 12K tow / 2×2 twill: excellent coverage with good drape for complex shapes and a premium visual finish.
• Tight, consistent weave: helps reduce print-through and pinholes when processed correctly.
• Process-friendly: performs well in hand layup, vacuum bagging, and resin infusion.
• Available widths: 50″ and 60″ to minimize seams on larger panels.

Typical applications

• Automotive & motorsport: structural skins, splitters, undertrays, seat shells, brackets, and mounts
• Marine & watersports: bulkheads, transoms, stringers, board cores, tooling skins
• UAV/robotics & industrial: frames, arms, machine guards, high-impact panels
• Molds & fixtures: stiff backing plies behind surface fabrics

Specifications

• Fiber: Carbon Fiber (PAN-based)
• Tow size: 12K
• Weave: 2×2 Twill
• Areal weight: 19.7 oz (≈668 gsm)
• Widths: 50″ (127 cm) and 60″ (152.4 cm) nominal
• Recommended resin: Epoxy (clear, UV-stable epoxy for cosmetic work); compatible with polyester/vinyl ester where appropriate
• Processes: Hand layup, vacuum bagging, resin infusion

Layup tips

• Use as structural plies or backing layers beneath lighter cosmetic fabrics for a premium finish.
• Balance laminates with 0/90° and ±45° orientations for stiffness and dimensional stability.
• Employ peel ply, proper debulking, and post-cure per resin manufacturer to minimize print & pinholes.

Sold by the linear yard (36″ length × 50" or 60" width). Continuous yardage ships on one roll when possible.
