Carbon Fiber Fabric 2x2 Twill 3k 6oz/203gsm Hexcel AS4

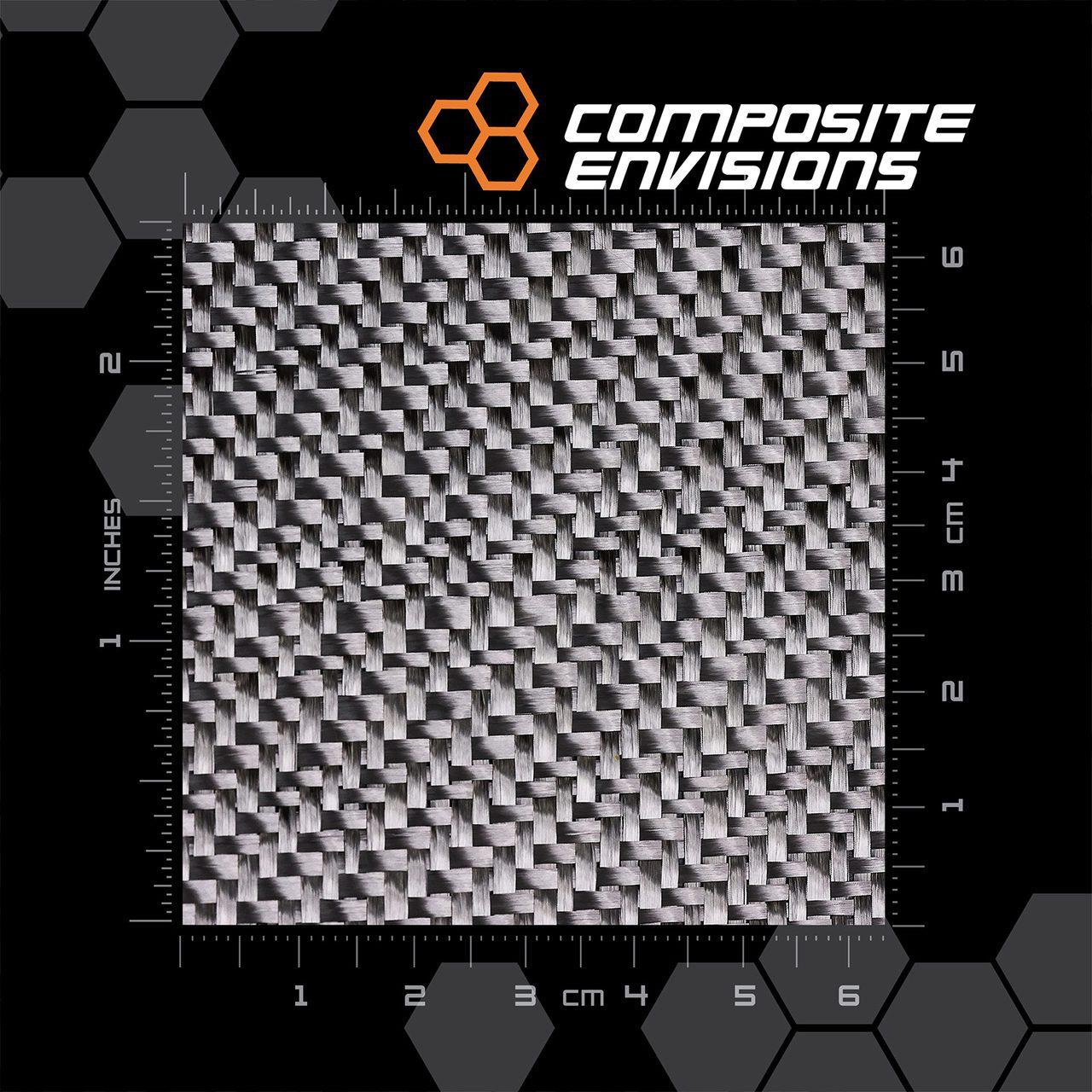

Carbon Fiber Fabric — Hexcel® AS4, 3K 2×2 Twill, 6 oz (203 gsm), 50″ Width

Woven from genuine Hexcel AS4 aerospace-grade 3K fiber (~644 ksi tensile), this carbon cloth delivers a premium cosmetic twill finish and excellent mechanical performance. The 2×2 twill construction provides superior drape over complex shapes while maintaining balanced, predictable properties for strong, low-void laminates.

• Fiber / Tow: Hexcel AS4 carbon, 3K (high-strength PAN-based)
• Weave: 2×2 twill for a deep, high-end carbon appearance and easy conformability
• Areal Weight: 6 oz (203 gsm)
• Width: 50″ (127 cm) — sample swatches available
• Benefits: Tight, uniform weave; great drape; low print-through; strong stiffness-to-weight; show-quality cosmetics
• Processes: Hand layup, vacuum bagging, and resin infusion; compatible with clear, UV-stable epoxy systems
• Applications: Automotive & motorsports panels, marine components, UAV/robotics, sporting goods, interior trim, and cosmetic skins/veneers

Tips for Best Results

• Use a clear, UV-stable epoxy to showcase the twill pattern and protect the cosmetic finish.
• Vacuum consolidation or infusion helps achieve low-void laminates and crisp surface quality.

Sold by the linear yard (50″ × 36″ per yard). Multiple yards ship as one continuous length whenever possible.
