Carbon Fiber Fabric 2x2 Twill Triaxial 0/+60/-60 12k 48"/121.92cm 15.6oz/529gsm Toray T700
Description
Description

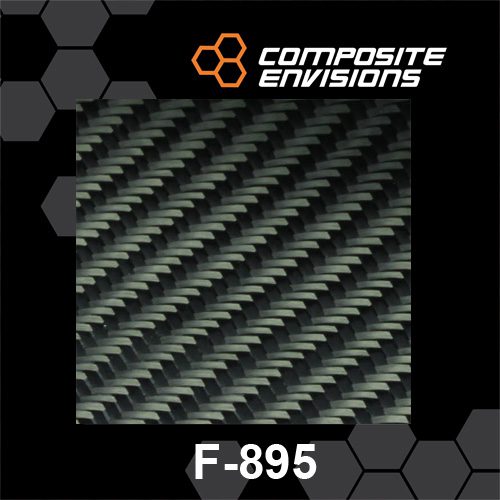

Carbon Fiber Fabric – 2x2 Twill Triaxial 0/+60/−60, 12k, 48"/121.92 cm, 15.6 oz / 529 gsm – Toray T700
Build quasi-isotropic laminates in a single ply. This triaxial carbon fabric combines three directions of reinforcement—0°, +60°, and −60°—in one balanced, 2x2 twill construction. Woven with Toray T700 12k aerospace-grade fiber (≈71 ksi), it delivers high strength, excellent drape, and an attractive twill appearance while cutting lay-up time and ply count compared to stacking individual unis or biaxials.
Why this fabric
- Quasi-isotropic in-plane performance: 0/+60/−60 architecture spreads loads efficiently in three directions.
- Fewer plies, faster lay-ups: Achieve the fiber orientations you need in one fabric, reducing seams and print-through.
- 2x2 twill face: Excellent drape over tight radii with a premium cosmetic weave.
- Aerospace fiber pedigree: Toray T700 12k provides consistent mechanical properties and processing.
- Stable, clean handling: Triax/twill construction resists distortion for accurate part geometry.
Typical applications
- Motorsports panels, tubs, splitters, undertrays
- UAV/Drone airframes, prosthetics, robotics, and aerospace interiors
- Marine foils, paddles, boards, and performance sporting goods
- Automotive body panels, interior trim, carbon skins, and tooling faces
Specifications
| Fiber | Toray T700, 12k |
|---|---|
| Architecture | Triaxial 0° / +60° / −60° with 2x2 twill face |
| Areal Weight | ≈ 15.6 oz/yd² (≈ 529 gsm) |
| Width | 48" (121.92 cm) |
| Approx. Thickness | ≈ 0.022" (0.56 mm) |
| Finish / Hand | Dry woven; requires resin to cure |
| Compatible Resins | Epoxy (recommended), vinyl ester, polyester |
| Appearance | 2x2 twill face — excellent cosmetic surface after clear-coating |
Processing notes
- This is a dry fabric; wet-out with your preferred epoxy or resin.
- Balance laminate with symmetrical stacking for optimal stiffness and print-through control.
- Suitable for hand lay-up, vacuum bag, VARTM/infusion, and prepreg workflows.
Ordering & shipping
- Sold by the linear yard (continuous length when multiple yards are ordered).
- Standard roll width: 48" (121.92 cm).
- We ship fabric on a core and poly-wrap to protect the weave in transit.
Note: Technical values are typical and not guaranteed; verify suitability for your design and process.
Sold by the linear yard (36″ length × 50" or 60" width). Multiple yards are supplied as one continuous length whenever possible.
