Carbon Fiber Fabric Plain Weave 12k 50", 5.75oz/195gsm Spread Tow

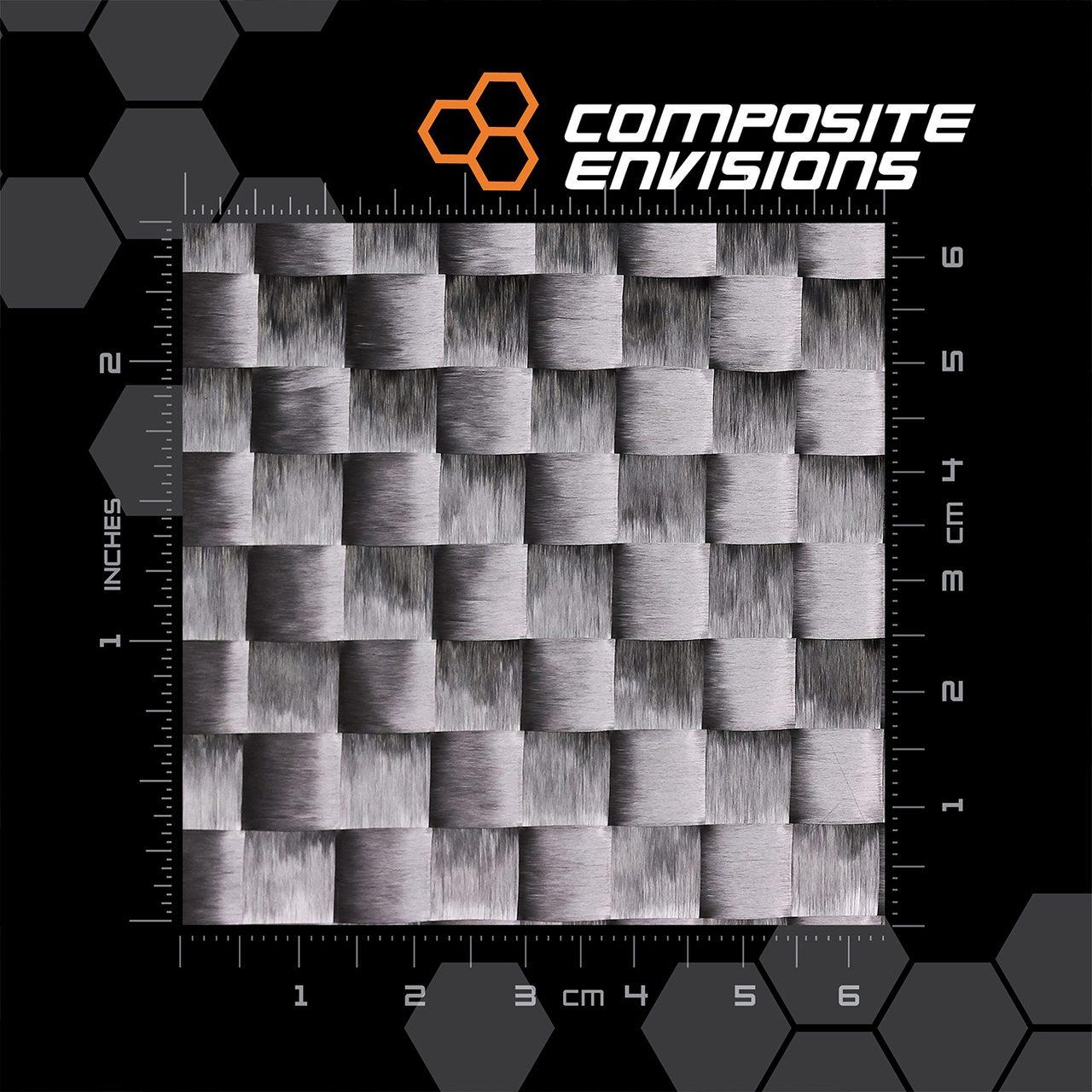

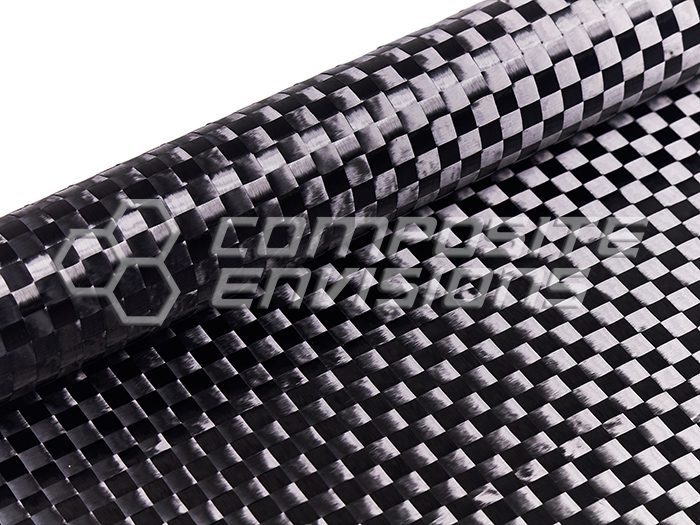

Toray® T700 Plain-Weave Carbon Fabric — 50", 5.75 oz (195 gsm)

Engineered for high-performance composites, this plain-weave carbon fabric is woven from Toray® T700 fiber. Light yarn spreading reduces fiber crimp to improve load transfer and minimize resin uptake, yielding lighter, stronger laminates with a smooth, cosmetic finish.

• Width: 50″
• Areal Weight: 5.75 oz (195 gsm)
• Weave: Plain
• Fiber: Toray® T700 carbon
• Process Friendly: Hand layup, vacuum bagging, infusion
• Benefits: Reduced crimp, lower resin consumption, high strength-to-weight
• Applications: Motorsports, marine, aerospace/UAV, structural panels

Ordering

• Width: 50"
• Sold by:Linear Yard — 1 yard = 36" length × full width
• Continuous Lengths: Multiple yards ship as one continuous piece whenever possible.

We sell this fabric by the linear yard. You will receive a continuous piece of fabric at the width listed.

For example, if the fabric is 50" wide, a quantity of 1 (linear yard) equals a continuous piece measuring 50" wide × 36" long. A quantity of 5 (linear yards) equals a continuous piece measuring 50" wide × 180" long.
