Carbon Fiber Fabric Plain Weave 1k 3.7oz/125gsm Toray T300

Carbon Fiber Fabric — Toray® T300, 1K Plain Weave, 3.7 oz (125 gsm), 50″ Width

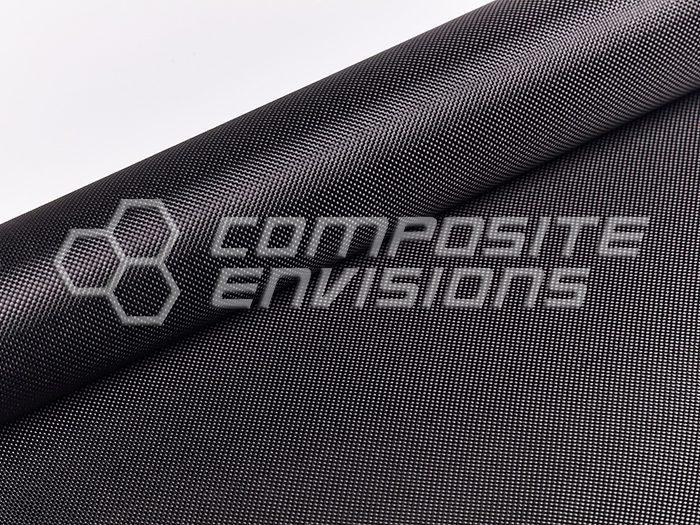

Woven from genuine Toray® T300 1K PAN-based fiber, this premium plain-weave carbon cloth delivers a tight, uniform checkerboard and excellent strength-to-weight. The fine 1K tow packs efficiently with minimal crimp, helping reduce resin uptake while producing clean cosmetic skins and crisp structural laminates.

• Fiber / Tow: Toray T300 carbon, 1K (PAN-based)
• Weave: Balanced plain weave for predictable drape and easy orientation
• Areal Weight: 3.7 oz (125 gsm)
• Nominal Thickness: ~0.006″ (≈0.16 mm), dependent on resin content
• Width: 50″ (127 cm)
• Benefits: Low-crimp architecture for higher stiffness/strength, reduced resin consumption, smooth cosmetic finish
• Processes: Hand layup, vacuum bagging, resin infusion, or prepreg
• Applications: UAV/RC components, sporting goods, automotive/marine interior panels, consumer products, cosmetic veneers, instrument housings

Tips

• Use a clear, UV-stable epoxy for best appearance and durability.
• Vacuum consolidation (bagging or infusion) helps achieve a flat, low-void laminate.

Sold by the linear yard (36″ × 50″ per yard). Multiple yards ship as one continuous length when possible.
