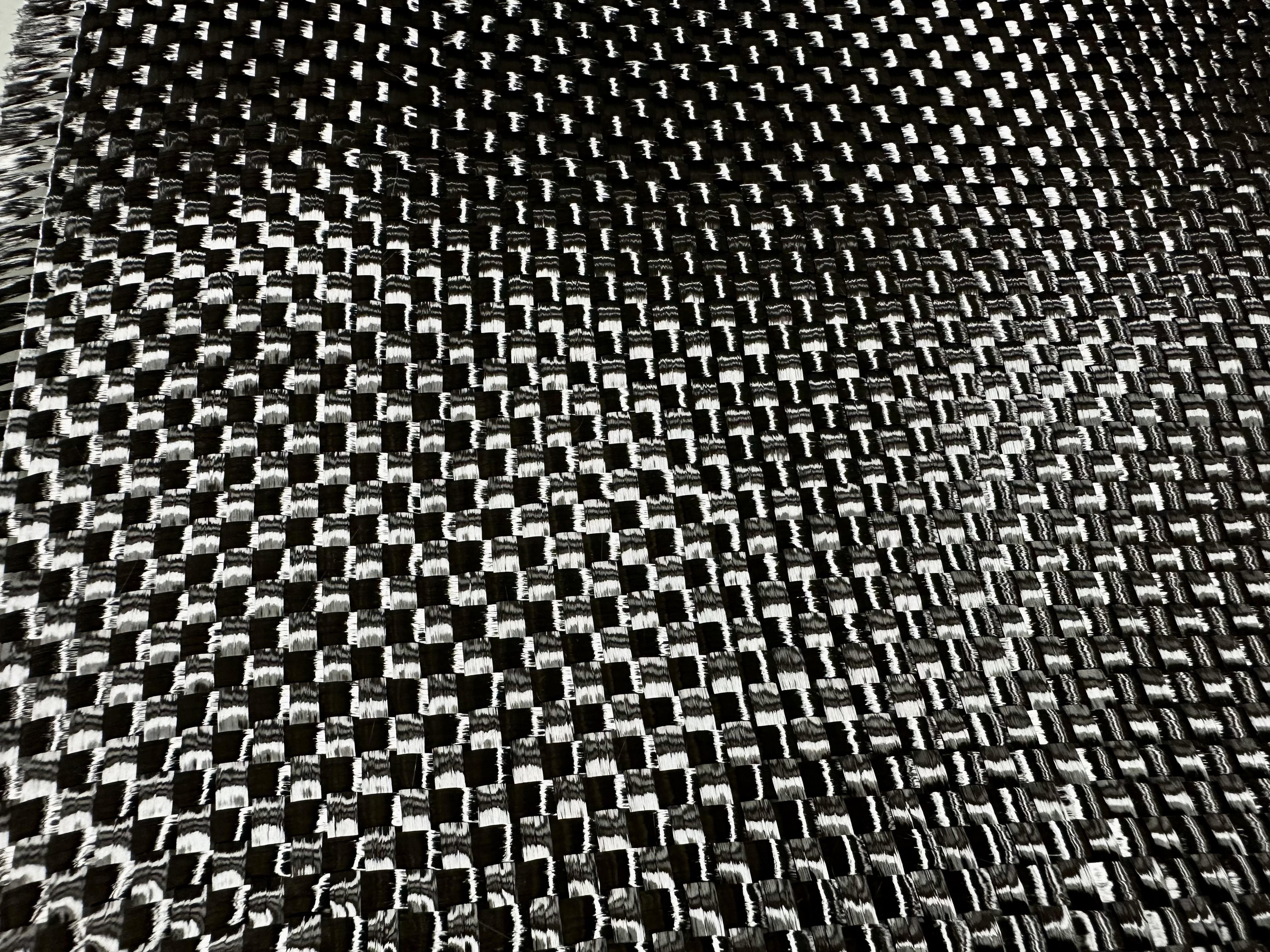

Carbon Fiber Fabric — Plain Weave, 24K, 50″ Width

Professional-grade plain-weave carbon fabric designed for strong, dimensionally stable laminates. The balanced over/under weave delivers uniform properties in both directions, while 24K tow enables rapid thickness build and excellent stiffness for large panels, tooling faces, and high-load skins.

Key Advantages

• Balanced strength: Plain weave provides even warp/weft performance with predictable drape.
• Efficient layups: 24K tow builds thickness quickly to reduce ply count and labor.
• Clean cosmetic surface: Low-crimp weave helps minimize print-through with proper cure and post-finish.
• Process-flexible: Suitable for wet layup, vacuum bagging, and resin infusion.

Recommended Uses

Automotive and powersports panels, UAV/robotics structures, marine components, sporting goods, composite repairs, and mold faces/backing plies where stiffness, weight savings, and repeatable handling are critical.

Processing Notes

• For best surface quality, pair with appropriate peel ply, release, and breather/flow media.
• Observe resin mix ratios, pot life, and cure/post-cure schedules from the resin manufacturer.
• For tight radii or complex geometries, blend in smaller-tow or twill plies in transition areas.

Cutting & Storage

• Use dedicated composite shears or a rotary cutter; edges may fray if handled aggressively.
• Store clean and dry, away from UV and moisture, in original packaging until use.

Ordering

• Sold by the linear yard unless otherwise specified.
• Multiple-yard orders ship as one continuous length whenever possible.

Performance depends on layup schedule, resin system, and cure. If you require exact areal weight, thickness per ply, or certification for a specific project, contact us for the current roll’s technical details before building.
