Carbon Fiber Fabric Plain Weave Intermediate Modulus 6k 6.13oz/208gsm Hexcel IM7

Carbon Fiber Fabric — Hexcel® IM7, 6K Intermediate-Modulus, Plain Weave, 6.13 oz (208 gsm), 50″ Width

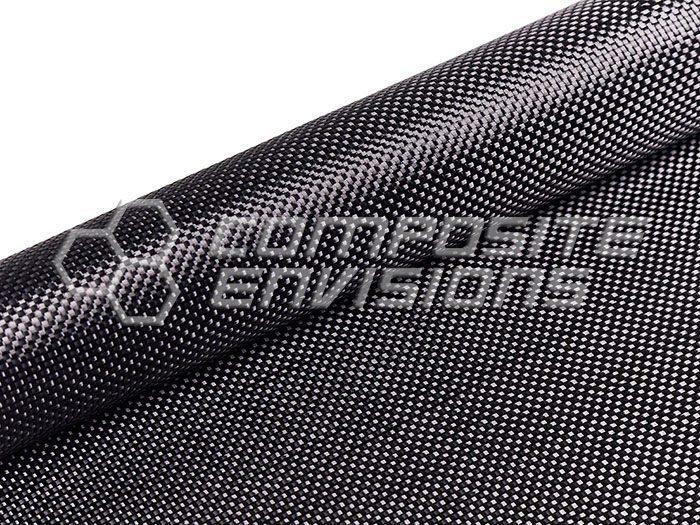

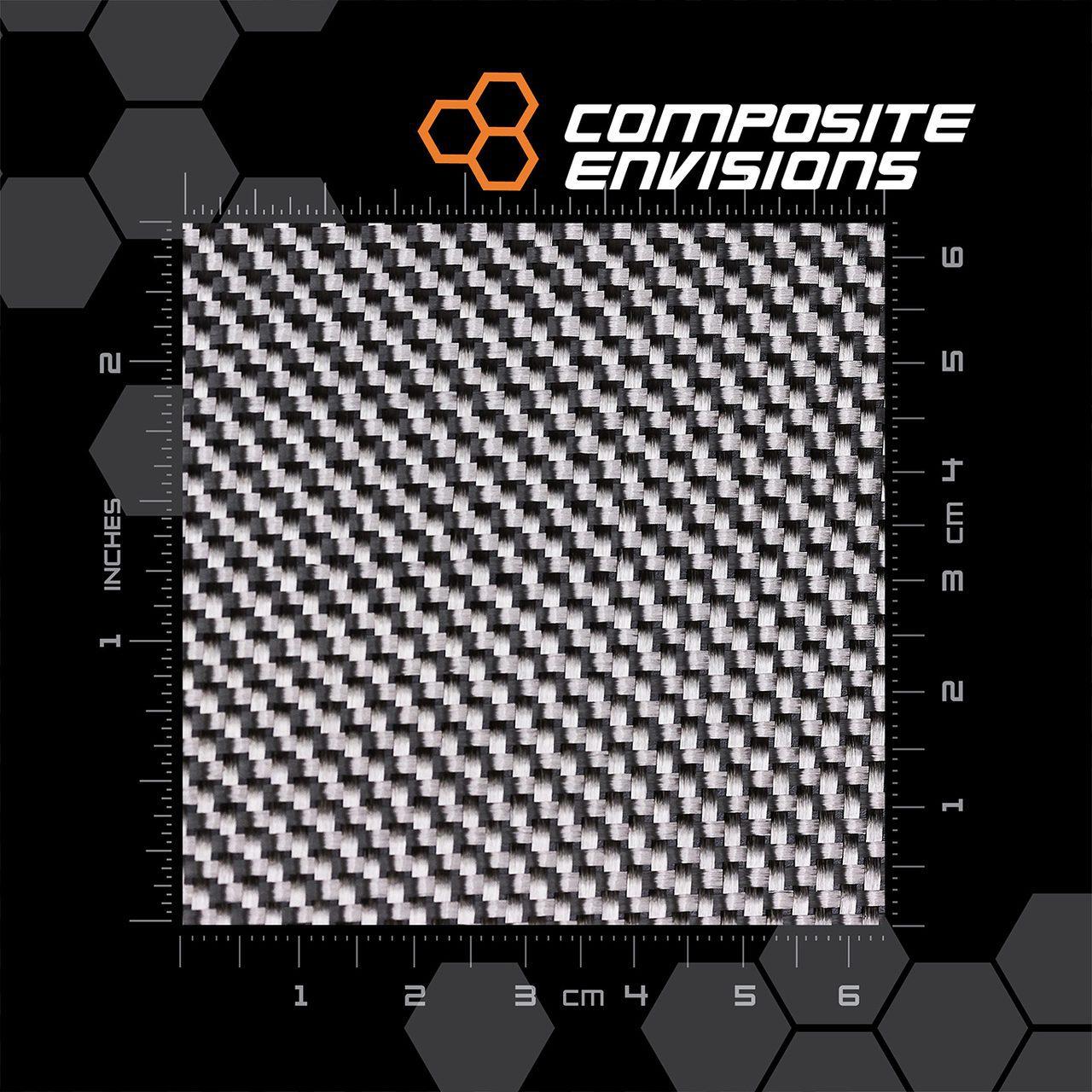

Woven from genuine Hexcel IM7 6K intermediate-modulus fiber, this plain-weave carbon cloth delivers a step up in stiffness over standard-modulus fabrics while maintaining excellent handling and cosmetics. IM7’s fine filament bundle gives this 6K fabric a refined, “3K-like” appearance with tight, uniform coverage—ideal for structural skins that still need a clean checkerboard finish.

• Fiber / Tow: Hexcel IM7 carbon, 6K (intermediate-modulus)
• Construction: Balanced plain weave for predictable drape, easy orientation, and stable cutting
• Areal Weight: 6.13 oz (208 gsm)
• Nominal Thickness: ~0.009″ (≈0.23 mm), resin-content dependent
• Width: 50″ (127 cm)
• Benefits: Higher stiffness vs. standard-modulus 208 gsm cloth, low print-through, smooth cosmetic finish, efficient fiber packing
• Processes: Hand layup, vacuum bagging, resin infusion, or prepreg
• Applications: Motorsports and marine panels, UAV/robotics, brackets and housings, sandwich facesheets, cosmetic skins

Tips for Best Results

• Use a clear, UV-stable epoxy for maximum clarity and durability.
• Vacuum consolidation (bagging or infusion) helps achieve flat, low-void laminates with crisp surface finish.

Sold by the linear yard (36″ × 50″ per yard). Multiple yards ship as one continuous length when possible.
