Carbon Fiber/LMFG Stabilized Fabric 2x2 Twill 3k 6.1oz/206gsm Toray T300

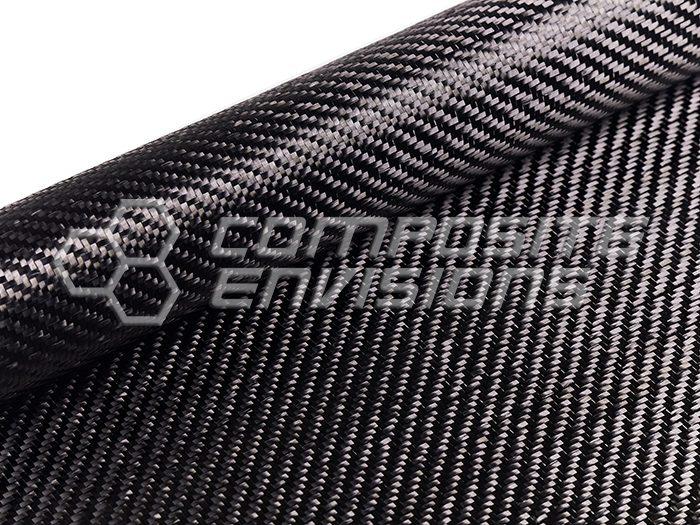

Carbon Fiber / LMFG Stabilized Fabric — 2×2 Twill, 3K — 6.1 oz (206 gsm) — Toray® T300

This fabric combines the classic 2×2 twill 3K carbon look with easier handling on the bench. A small number of low-melt fiberglass (LMFG) yarns are woven into the cloth to stabilize the bundles, dramatically reducing edge fray and distortion when the fabric is cut, moved or vacuum-bagged. The LMFG yarns become nearly invisible when wet-out and have minimal effect on the cosmetic appearance while providing a noticeably cleaner process.

• Fiber / Tow: Toray® T300 PAN-based carbon, 3K with select LMFG stabilization yarns
• Weave: 2×2 twill (premium cosmetic, excellent drape)
• Areal Weight: 6.1 oz (206 gsm)

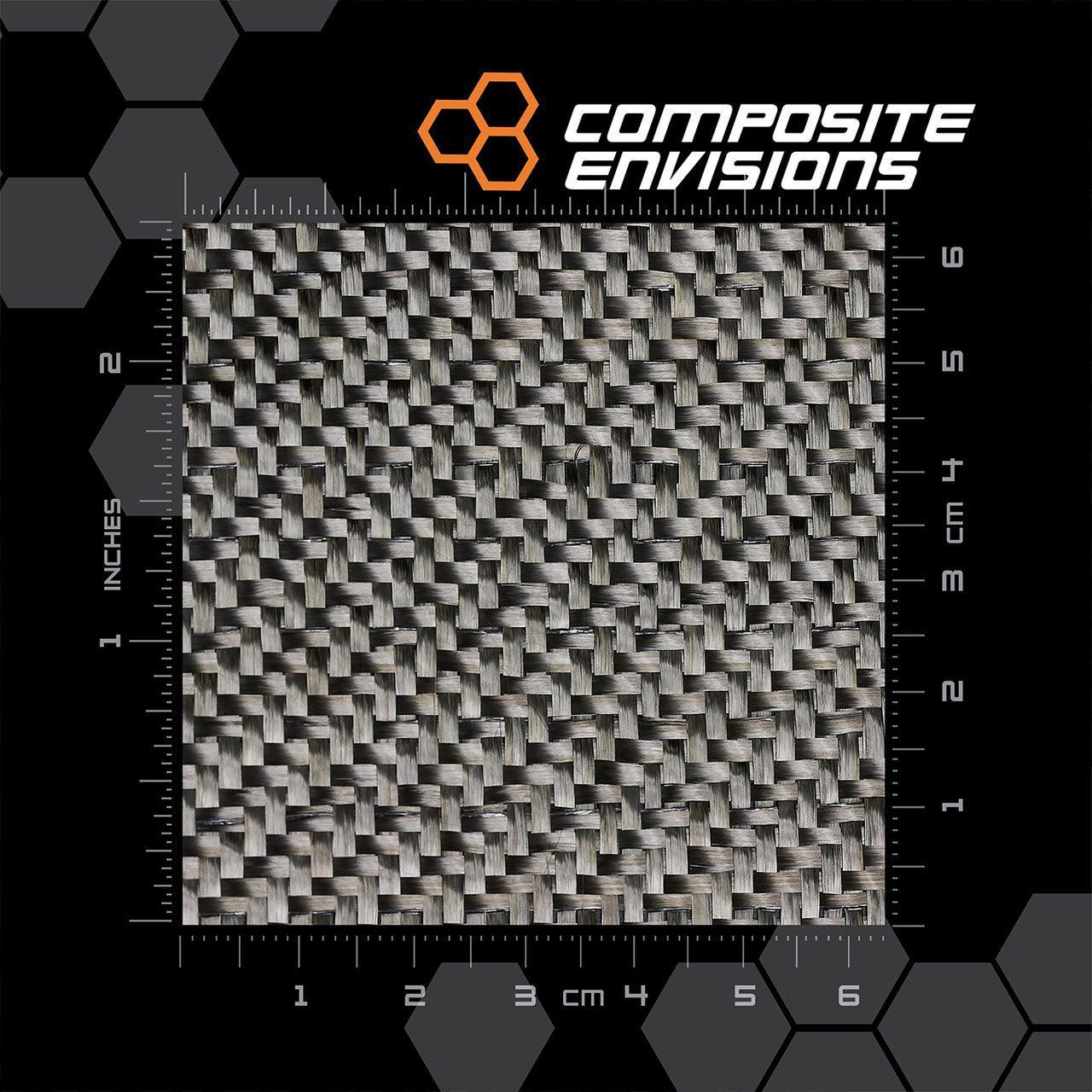

• Width: 50″ (sample swatches available)

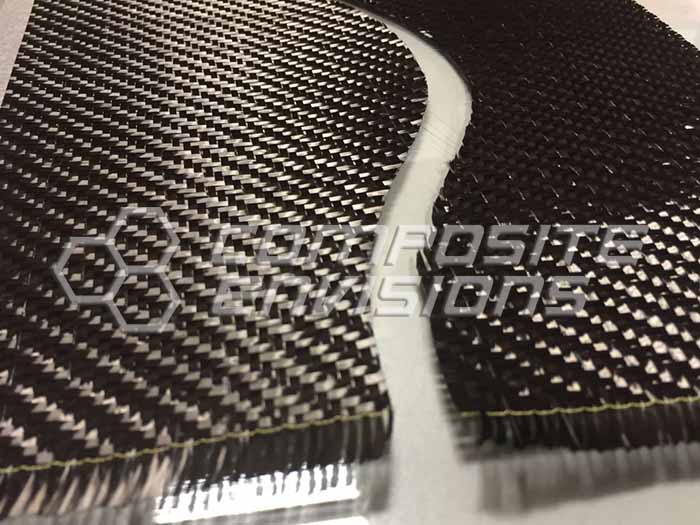

• Stabilization Benefits: Less fraying, cleaner edges, improved kit accuracy, easier pattern alignment and layup
• Processes: Hand layup, vacuum bagging, and resin infusion using clear, UV-stable epoxy systems
• Applications: Automotive & motorsports panels, marine parts, consumer products, UAV/drone structures, cosmetic skins, interior trim and general composite laminates

Notes & Tips

• LMFG yarns are subtle in the final laminate and help maintain the twill pattern during handling and vacuum consolidation.
• Use a high-clarity epoxy for the best cosmetic depth and to keep the twill definition crisp.
• Stabilized fabrics are especially useful for kitted pre-cuts, CNC cutting, and multi-layer layups where edge stability matters.

Sold by the linear yard (36″ length x 50" width). Multiple yards typically ship as one continuous length.
