Fiberglass Chopped Strand Mat 6.75oz sqyd-0.75oz sqft/229gsm

Fiberglass Chopped Strand Mat – 6.75 oz/229 gsm • 50″ Width

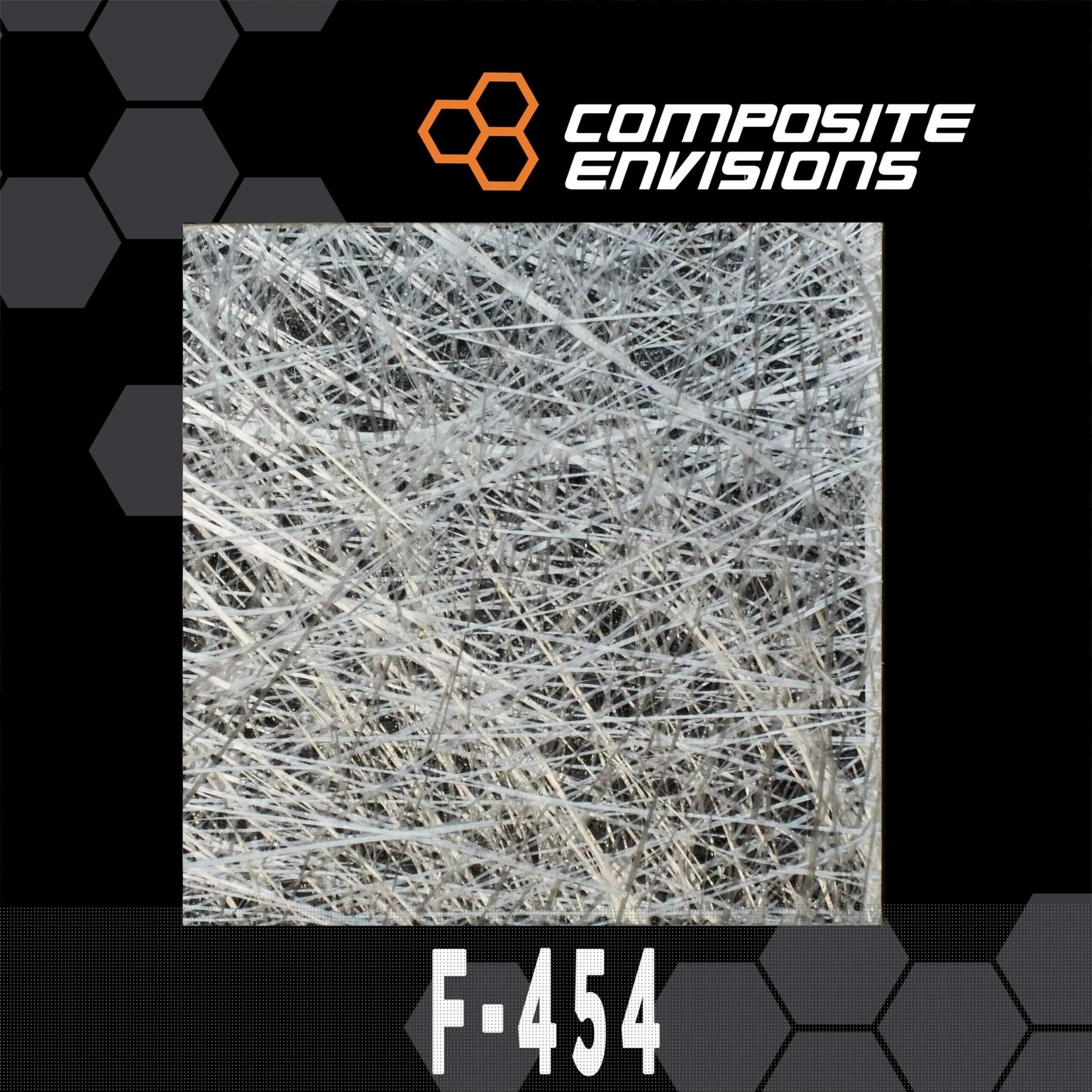

This chopped strand mat (CSM) is a non-woven reinforcement made from random, short E-glass fibers that are bound together with an emulsion binder. The random fiber orientation provides excellent drape and the ability to conform to tight radii and compound curves, making it a favorite for hand lay-up and repair laminations. At 6.75oz sqyd (0.75oz sqft/229 gsm), this mat is a light build layer that wets out quickly and is often used as a surface/skin coat or between heavier fabrics to reduce print-through and improve finish quality.

Key Features

• Non-woven, conformable mat—easily follows tight contours, corners, and fillets.
• Fast wet-out with polyester and vinyl ester resins; ideal for hand lay-up and open-mold processes.
• Print-blocker / surface improver—use between woven or stitched fabrics for a smoother cosmetic finish.
• Versatile weight—0.75 oz/ft² (≈229 gsm) adds uniform glass quickly without excessive resin demand.
• Made from Hexcel-quality E-glass for consistent fiber distribution and dependable performance.

Typical Applications

• Skin coats and surface layers to reduce fabric print-through.
• Boat, auto, powersports & general fiberglass repairs and lay-ups.
• Bridging seams, transitions, and tight radii in molds and parts.
• Intermediate plies between woven/stitched reinforcements.
• Cosmetic build layers where smooth finish and easy drape are required.

Specifications

• Fiber: E-Glass
• Construction: Chopped Strand Mat (CSM), non-woven
• Binder: Emulsion—compatible with polyester & vinyl ester (not recommended for epoxy)
• Areal Weight: 6.75oz sqyd (0.75oz sqft/229 gsm)
• Standard Width: 50″ (127 cm)
• Recommended Processes: Hand lay-up, open mold, vacuum-assist with surface veil/fabrics

Processing Notes

• Best results with polyester or vinyl ester resins. For epoxy systems, use CSM with powder binder or a compatible veil.
• Pre-cut patterns and pre-fit to complex areas for clean lay-ups and minimal bridging.
• Wet out thoroughly and consolidate with a laminating roller to remove entrapped air.
• Place CSM between heavier fabrics to reduce print-through and improve surface finish.

Ordering

• Standard width: 50″ (127 cm)
• Sold by: Linear yard — 1 yard = 36″ length × full width
• Continuous lengths: Multiple yards ship as one continuous roll whenever possible.

Color Disclaimer: Due to individual monitor settings, lighting, and calibration, actual fabric color may vary from what is shown online.

We sell this fabric by the linear yard. You will receive a continuous piece of fabric at the width listed.

For example, if the fabric is 50" wide, a quantity of 1 (linear yard) equals a continuous piece measuring 50" wide × 36" long. A quantity of 5 (linear yards) equals a continuous piece measuring 50" wide × 180" long.
