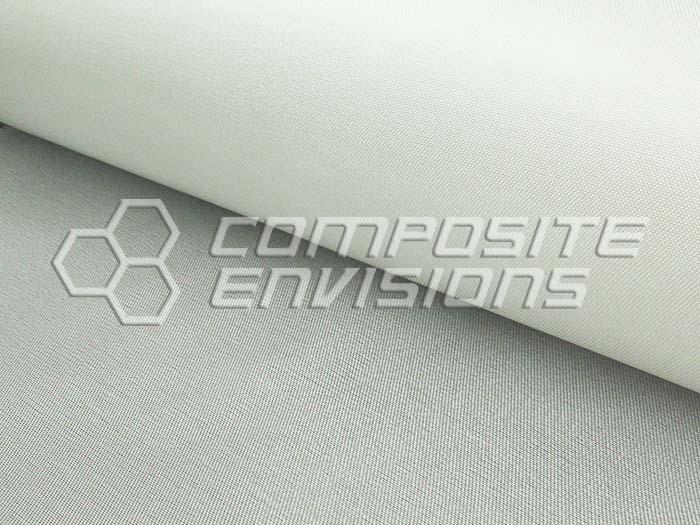

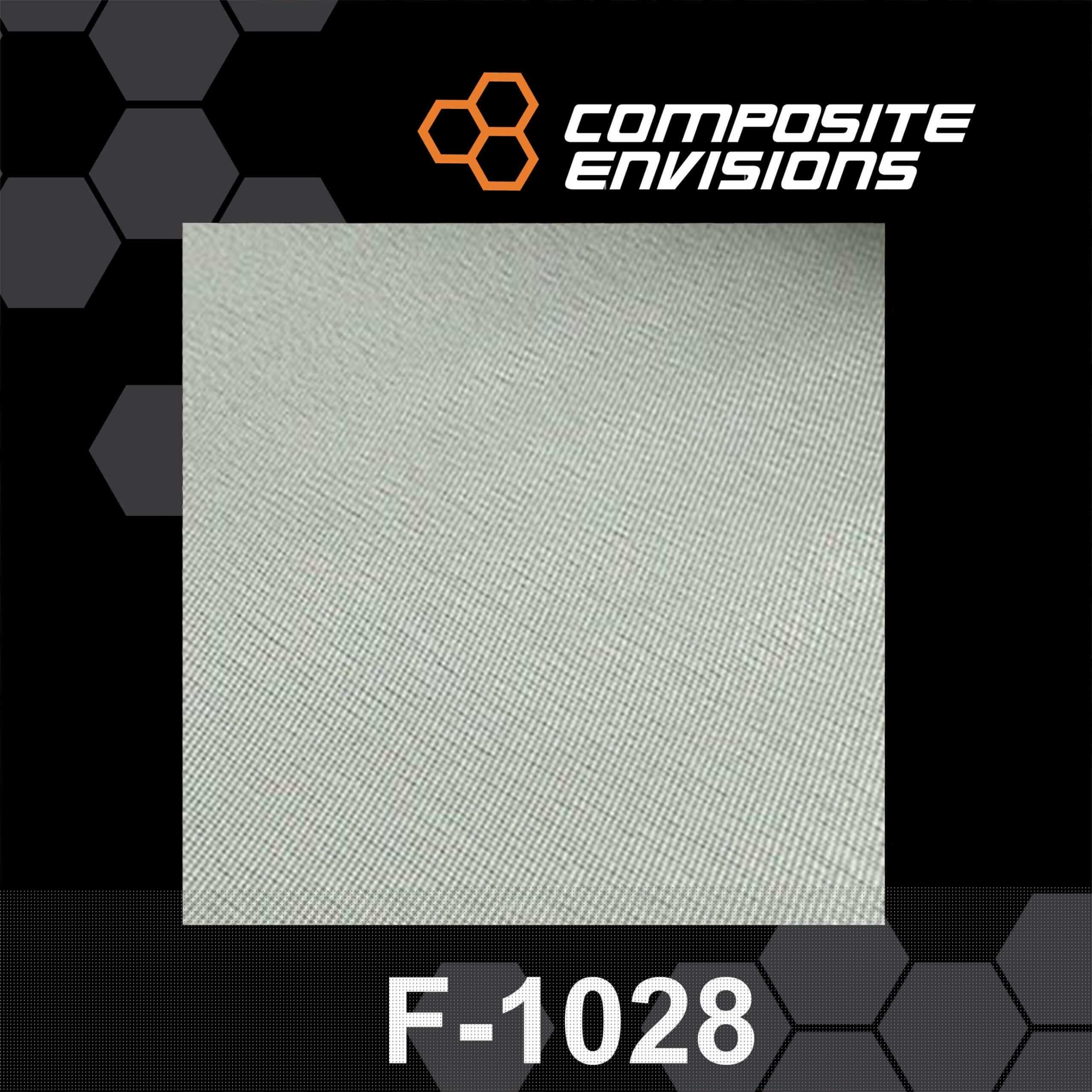

Hexcel HexForce Fiberglass E-Glass Plain Weave 9.41oz/319gsm Style 7500 F16 Finish

Hexcel HexForce Fiberglass E-Glass Plain Weave 9.41oz/319gsm – Style 7500 F16 Finish

Hexcel HexForce Style 7500 is a heavy-duty E-glass plain weave fiberglass fabric engineered for applications that demand robust strength, thickness, and durability. At approximately 9.41oz (≈319gsm), this cloth is an excellent choice for tooling, structural skins, backing plies, and impact-resistant laminates where a stable, easy-to-handle reinforcement is critical.

The plain weave construction provides uniform fiber distribution, predictable wet-out, and good conformability over gentle curves while maintaining dimensional stability. The proven F16 finish is designed for compatibility with epoxy, vinyl ester, and polyester resin systems, delivering strong mechanical bonds and consistent laminate performance.

Key Features

• High-quality Hexcel HexForce E-glass for reliable, repeatable performance.
• 9.41oz (≈319gsm) weight for increased stiffness, build thickness, and durability.
• Plain weave for balanced strength, stable handling, and clean layups.
• F16 finish optimized for epoxy, vinyl ester, and polyester resin systems.
• Suitable as a primary structural layer or backing fabric in multi-ply laminates.
• Standard width: 50 inches

Typical Applications

• Molds and tooling for composite production
• Marine hulls, decks, stringers, and internal structure
• Industrial panels, housings, and protective covers
• Reinforcement and buildup layers behind lighter surface fabrics
• General-purpose structural laminates and repairs

Technical Summary

• Fiber Type: E-Glass
• Style: 7500
• Construction: Plain Weave
• Finish: F16
• Fabric Weight: ~9.41oz/yd² (≈319gsm)
• Width: 50 inches
• Resin Compatibility: Epoxy, Vinyl Ester, Polyester

Ordering

• Width: 50" (127 cm)
• Sold by:Linear Yard — 1 yard = 36" length × full width
• Continuous Lengths: Multiple yards ship as one continuous piece whenever possible.

Color & Image Notice: Product photos are representative only. Actual appearance may vary slightly due to monitor settings, lighting, and production variations.
