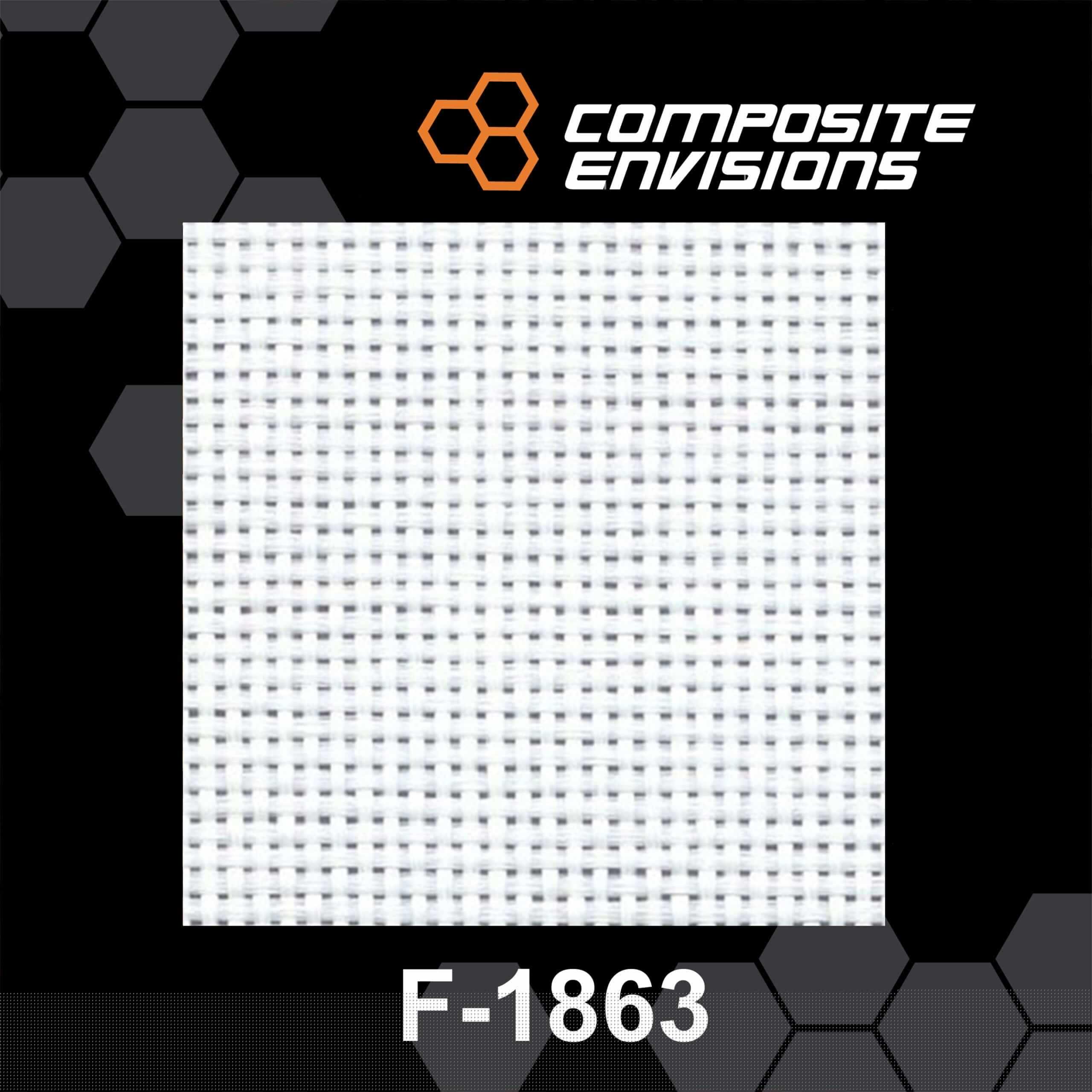

Innegra S Plain Weave 625 Denier 2oz/68gsm

Innegra® S Plain Weave 625 Denier • 2.0 oz/68 gsm • 36″ Width

Achieve durable, ultra-light laminates with Innegra® S Plain Weave. This 625-denier, 2.0 oz (≈68 gsm) fabric uses high-modulus polypropylene (HMPP) fibers that deliver outstanding impact resistance, energy absorption, vibration damping, and buoyancy at a fraction of the weight of traditional reinforcements. The plain-weave construction drapes easily, wets out cleanly, and is ideal as a toughening ply in hybrid laminates with carbon or glass—or as a stand-alone reinforcement where durability and feel matter.

Key Features

• Very light areal weight: 2.0 oz/yd² (≈68 gsm) for minimal mass and added buoyancy.
• Superior impact tolerance: High energy absorption improves damage resistance in composite skins.
• Vibration damping: Reduces buzz/harshness in sporting goods and vehicle panels.
• Hybrid-ready: Excellent with carbon, glass, and aramid to boost toughness without a weight penalty.
• Hydrophobic & chemical resistant: Low water uptake; stable in a wide range of environments.
• Resin compatibility: Works with epoxy, vinyl ester, and polyester systems.

Typical Applications

• Surf/SUP boards, paddle blades, canoe/kayak skins, and other marine interiors.
• Bike, board, racket, stick and paddle sports where durability, feel and weight matter.
• Automotive/powersports cosmetic skins backed by a toughening interlayer.
• Leisure & industrial components requiring light weight, buoyancy and impact tolerance.

Specifications

• Fiber: Innegra® S (HMPP: high-modulus polypropylene)
• Weave: Plain weave
• Yarn Size: 625 denier
• Areal Weight: 2.0 oz/yd² (≈68 gsm)
• Standard Width: 36″ (91.4 cm)
• Resin Compatibility: Epoxy, vinyl ester, polyester
• Color: Natural white (non-conductive, low dielectric, hydrophobic)

Processing Notes

• Use as an outer ply for a soft white aesthetic, or as an interlaminate toughening layer beneath cosmetic carbon.
• Consolidate thoroughly (vacuum bagging or infusion recommended) to minimize print-through and maximize wet-out.
• Seal UV-exposed laminates with a UV-stable clear coat or paint system.
• When hybridizing, alternate orientations with carbon/glass to balance stiffness and impact performance.

Ordering

• Standard Width: 36″ (91.4 cm)
• Sold by: Linear yard — 1 yard = 36″ length × full width
• Continuous Lengths: Multiple yards ship as one continuous roll whenever possible.

Color & Image Notice: Appearance can vary with resin choice, laminate thickness, and lighting. Monitor settings and calibration may affect on-screen color/opacity. These variations do not affect performance.
