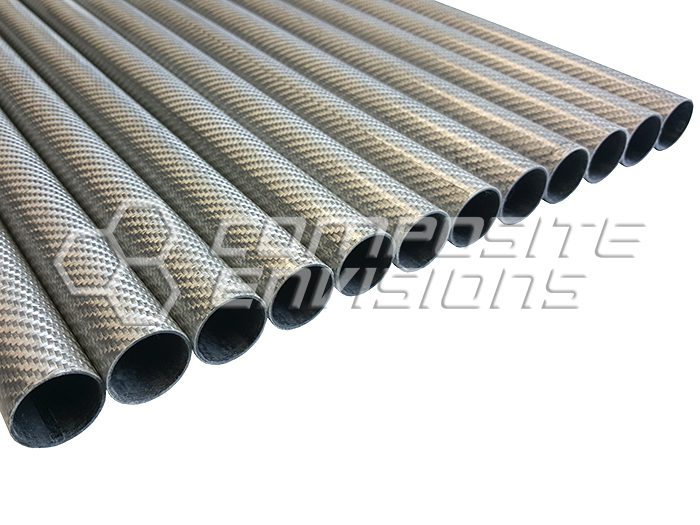

Roll Wrapped Carbon Fiber Tube Silver Aluminized Twill Weave Gloss Finish 48" long - This carbon fiber tube uses high strength unidirectional T-700 equivalent carbon fiber core with an epoxy resin system to ensure a strong rigid tube that will meet your needs. In addition to this high strength uni core this tube is finished with a beautiful 2x2 twill weave Silver Aluminized Fiberglass and then given a gloss finish. Due to raw material constraints it is hard to create pipes exactly at a specific measurement unless they are built over-sized and machined down so that is why our pipes may be a few thousandths off from our ideal measurement we are trying to match. This tube is available in 1/2", 3/4", 1" & 2" Outside Diameters.
| Outside Diameter | Inside Diameter |
| 13mm/.512" | 11mm/.434" |
| 19mm/.748" | 17mm/.670" |
| 25mm/.984" | 23mm/.906" |
| 51mm/2.008" | 48mm/1.890" |
| Tube Specs: | |
| Length | 1220mm/48" |
| Tolerances OD | +/- 0.1mm/.004" |
| Tolerances ID | +/- 0.5mm/.002" |
| Tolerances Length | +/- 1mm/.04" |
| Weight | 2.624oz/74.38g |
We offer many composite tubing varieties if this tube does not meet your needs. We offer pultruded materials in round solid bar, pipe, and square bar/tubing. Upon special order all of our unique fabrics can be converted into piping.
