Carbon Fiber Fabric Plain Weave 12k 2.65oz/90gsm Spread Tow

Carbon Fiber Fabric – Plain Weave 12K Spread Tow, 2.65 oz (90 gsm), 50″ Width

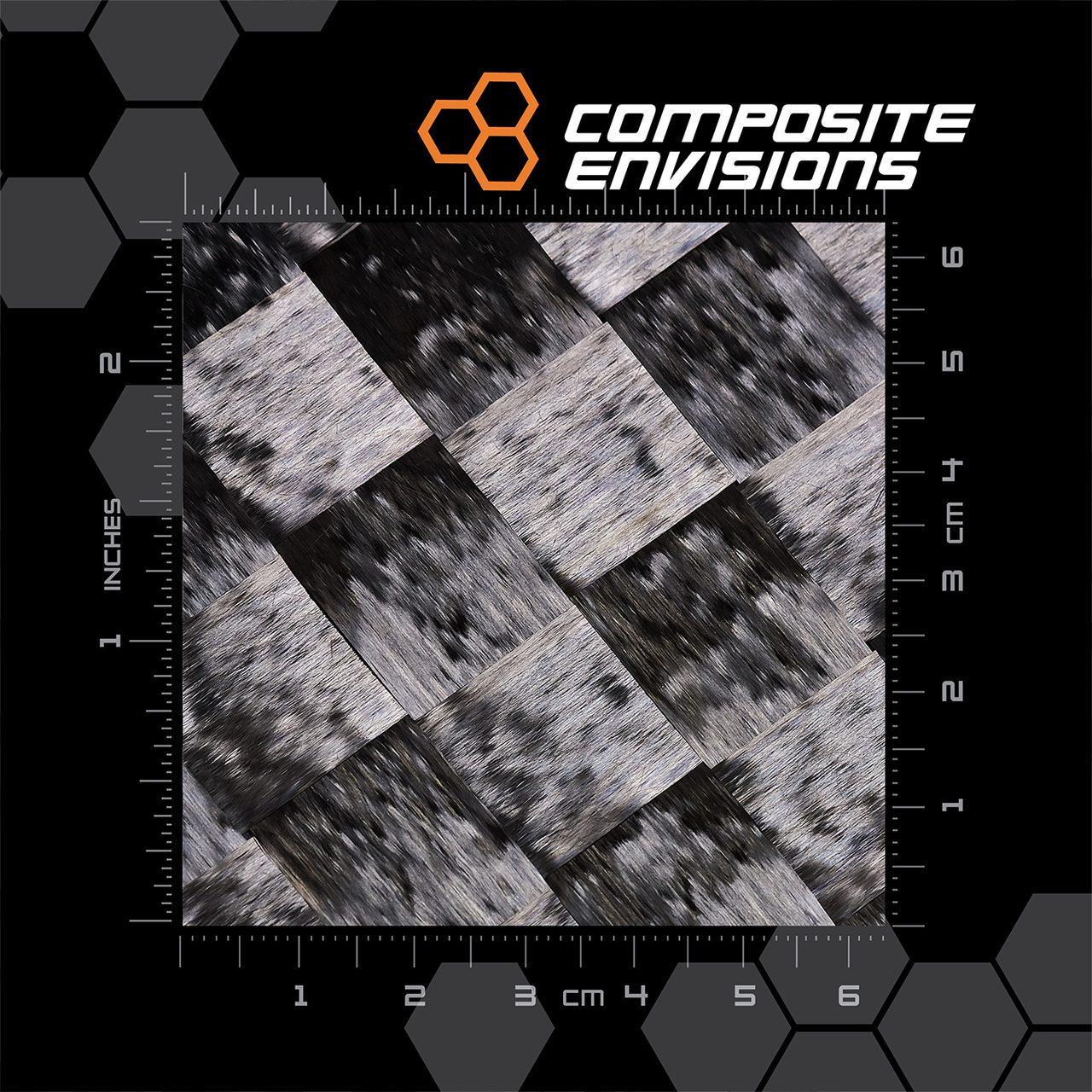

This ultra-light spread-tow carbon fabric is woven from Toray® T700 12K fiber in a true plain weave. The yarns are spread into flat tapes, minimizing crimp to improve load transfer, reduce resin uptake, and deliver an exceptionally high strength-to-weight laminate with a clean, checkerboard cosmetic finish.

• Fiber: Toray T700 carbon, 12K
• Construction: Plain weave, spread-tow
• Width: 50 in (127 cm)
• Areal weight: 2.65 oz (90 gsm)
• Benefits: Low-crimp architecture for higher stiffness/strength, lower resin consumption, smooth surface
• Processes: Hand layup, vacuum bagging, and vacuum infusion
• Applications: UAV/RC, sporting goods, automotive/aero interior panels, race components, cosmetic skins

Notes

• Use sharp shears or a rotary cutter to preserve the spread-tow edges.
• Pair with a clear epoxy for best optical clarity and cosmetic appearance.

Ordering

• Width: 50" (127 cm)
• Sold by:Linear Yard — 1 yard = 36" length × full width
• Continuous Lengths: Multiple yards ship as one continuous piece whenever possible.

We sell this fabric by the linear yard. You will receive a continuous piece of fabric at the width listed.

For example, if the fabric is 50" wide, a quantity of 1 (linear yard) equals a continuous piece measuring 50" wide × 36" long. A quantity of 5 (linear yards) equals a continuous piece measuring 50" wide × 180" long.
